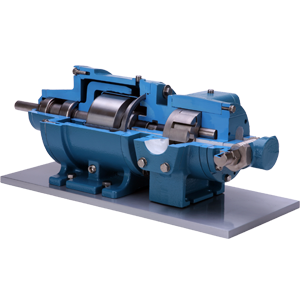

Mag Drive Process Gear Pump

M Series Mag Drive Process Gear Pump are magnetic coupled and replaces shaft seals to eliminate leakage and fugitive emissions, minimize downtime where seal maintenance is a concern. Excellent for liquids such as TDI, Styrene, Nitrocellulose.

Specification

Capacity : To 18 m3/hr
Pressure : To 35 bar
Temperature : -50℃ to 260℃
Viscosities : To 16,500 CST

Features

Reliable Design with High Strength Material for Long Service Life
90 and 180 degree Ports in all Models for various flow directions
Various Bushing Options like Carbon, Tungsten Carbide
Magnetic Coupled with Samarium Cobalt Magnets
Special Surface treatment like Nitriding for Abrasive Fluids
Jacketing Options for Solidifying Fluids

Application

Hazardous and Toxic Fluids
Expensive
Hard to seal Thin Fluids
