General Purpose Gear Pump

L, C & 1000 Series Pump are General Purpose Gear Pumps used for pumping Lubricating Oils for various OEM Machineries like Compressors, Generators, Engines, Machine Tool, Turbines etc.

Specification

Capacity : Up to 44 m3/hr
Differential Pressure : Up to 35 bar
System Pressure: Up to 60 Bar
Temperature : -50℃ to 260℃
Viscosities : To 5,500 cSt

Features & Benefits

Compact Design - Available in Flange, Foot and Direct Machine mount options.

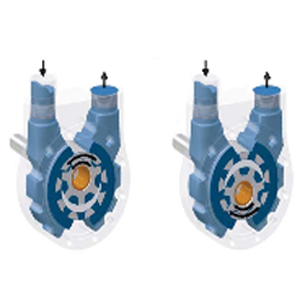

Unique Reversible Feature - Flow direction remain same, whichever direction the shaft rotates.
Unique Seal Flushing System for longer life.
Inline access of Pump Parts.

Application

Lubrication Oil / Hydraulic Oil
Metering / Injection / Filtration
OEM Machineries
