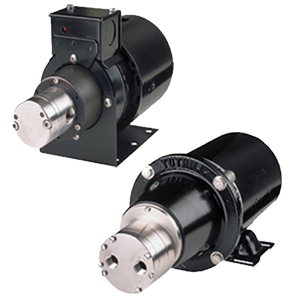

Mag Drive External Gear Pump

D & T Series Pumps are Magnetic Coupled External Gear Pump used for transferring and Metering of Specialty Chemicals used in Pharma, Biotech, Chemical, Laboratories, R & D Centers, OEM Machineries etc.

Specification

Displacement: 0.11 to 12 ml/rev
Capacity : To 2460 LPH
Differential Pressure: Up to 17 Bar
System Pressure : Up to 35 bar
Temperature : -50℃ to 176℃
Viscosities : To 2000 CST

Features & Benefits

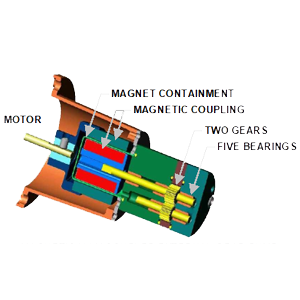

Magnetic Coupled - No Mechanical Seal & No Leakage
Ideal for Thin, Expensive Liquids
Compact Design - Ideal for OEM Machineries
Available in Corrosion Resistant Material like SS316, Hastelloy and Titanium with PPS, PEEK and PTFE Gears.

Application

Metering / Dosing / Dispensing
Sampling / Cleaning / Cooling
Transfer / Circulation / Filling
Hard to seal Thin Liquids
